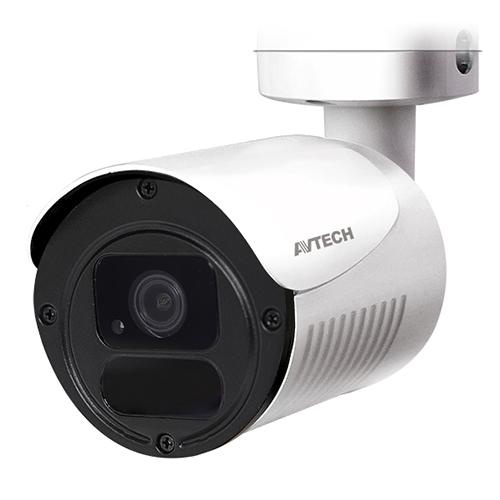

AVTECH DGC5105TS - 5MPX Bullet kamera

Video Mode

TVI, CVI, AHD & CVBS switchable

Pick-up Element

1/2.5” CMOS image sensor

Number of Pixels

2560 (H) x 1920 (V)

Video Frame Rate

5MP @ 20fps

Min. Illumination

0.1 Lux / F1.8, 0 Lux (IR LED ON)

S/N Ratio

More than 48dB (AGC OFF)

Shutter Speed

1/30 (1/25) sec ~ 1/60000 (1/50000) sec

Lens

f3.6mm / F1.8, f2.8mm / F1.8

Lens Angle

f3.6mm: 96° (Horizontal) / 50° (Vertical) / 116° (Diagonal)
f2.8mm: 100° (Horizontal) / 52° (Vertical) / 121° (Diagonal)

IR LED

2 units

IR Effective Distance

Up to 25 meters

IR Shift

YES

Day & Night Mode

YES

Noise Reduction

YES

IRIS Mode

AES

White Balance

AUTO

AGC

AUTO

Sharpness

Adjustable

Flickerless

50HZ / 60HZ / OFF

BLC

Adjustable

DWDR

YES

IP Rating

IP66

Operating Temperature

-20°C ~ 40°C

Operating Humidity

90% or less relative humidity

Power Source (±10%)

DC12V / 0.5A

Current Consumption (±10%)

100mA (IR LED OFF); 240mA (IR LED ON)

Net Weight (Kg)

0.36

Optional Junction Box

AVA456-WBKT

Certification

CE
